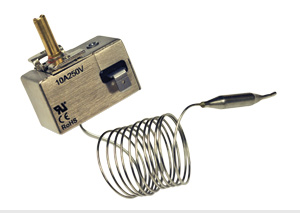

Bulb & Capillary Thermostats
Bulb & capillary thermostats remotely sense and control heat levels of electrical appliances. This class of thermostat relies on a special sealed blend of thermal material within the bulb & capillary assembly to sense heat.
Electrical: 10A/250V 15A/125V
Temperature Range: 86°F - 482°F +/-15°
(30°C - 280°C +/-8°)
Life Cycle: 30,000 cycles
Contact Resistance: ≤50M Ω
Maximum Ambient Temp: 482°F / 250°C
Bulb & Capillary thermostats provide system designers the freedom to place system controls in remote locations away from the heat source while still mechanically sensing thermal levels. This class of thermostat relies on a special sealed blend of thermal material within the bulb & capillary assembly to sense heat. Thermal energy "heat" causes the material to expand which opens and closes electrical contacts.
precision Engineered
The BC-300 has been fully designed and engineered from the ground up by a panel of on-site engineers dedicated to perfection. The BC-300 is manufactured with quality components you can rely on and trust to keep working the way you need them to. We fully test each one of our BC-300s to ensure optimal performance prior to shipping them to you; you can rest assured the BC-300s will perform above expectations.
Engineering Assistance
If you are unsure of what you need simply let our team of engineers work with you to solve your problems. Prior to any commitment we can provide samples for you to evaluate and qualify, giving you the confidence needed to move forward with your project.
Quotes
When requesting a quote simply start the conversation by letting us know what product you are interested in and how it will be applied when in use. Click on the "Request Quote" button to the left.
